Nema 23 1.5V Holding Torque Stepper Motor With Gearbox 212 Oz In For Multi Head Food Scale

Name: Nema 23 15V Holding Torque Stepper Motor With Gearbox 212 Oz In For Multi Head Food Scale
Brand: HeTai
Price: 1 USD

China Nema 23 1.5V Holding Torque Stepper Motor With Gearbox 212 Oz In For Multi Head Food Scale wholesale

Brand Name : HeTai

Model Number : 57BYGH636-79AG6

Certification : CE ROHS ISO

Place of Origin : China

MOQ : 50

Price : USD

Payment Terms : L/C, D/P, T/T, Western Union, MoneyGram

Supply Ability : 10000 PCS/MONTH

Delivery Time : 25 DAYS

Packaging Details : Carton with Inner Foam Box, Pallet

Product name : Stepping gearbox motor

Step Angle : 1.8 °

Temperature Rise : 80 ℃ Max

Insulation Resistance : 100MΩ Min.500VC DC

Ambient Temperature : -20℃~+50℃

Dielectric Strength : 500VAC 1 minute

Housing material : Powder metallurgy

Bearing at output : sleeve bearings

Radial load(10mm from flange) : ≤450N

Shaft axial load : ≤200N

Contact Now

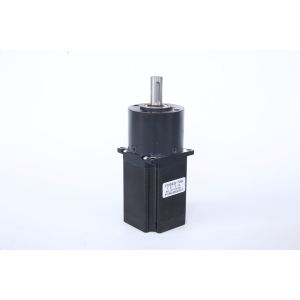

NEMA 23 1.5V 57BYGH636 Stepper Motor With Gearbox Holding Torque 1.5 NM 212 Oz In For Multi-Head Food Scale

Our factory has more than 20 years' experience of producing stepper motors. The professional manufacture and design strength has enable us to help customer solve their problems and supply quality products.

57BYGH636-79AG6 is consist of a DC 57mm stepper motor and a 56mm planetary gearbox. With the same load capacity, our powder metallurgy planetary gearbox has a higher lifespan than the traditional gearboxes. The key aspects are to improve efficiency and reliability in any mechanical system. There're also some cost-effective choices of material such as zinc alloy and engineering plastic.

This model is using a 56mm powder metallurgy gearbox, please see the following reduction ratio:

Stage 1

1/4, 1/6

Stage 2

1/15, 1/18, 1/26

Stage 3

1/47, 1/66

Please scroll down to see more details about the gearbox

Electrical Specification

STEP ANGLE	°/STEP	1.8
RATED VOLTAGE	V	1.5
CURRENT	A/PHASE	3
RESISTANCE	Ω/PHASE	0.5
INDUCTANCE	mH/PHASE	1.8
HOLDING TORQUE	kg.cm	15
INSULATION CLASS		B

*Products can be customized by special request.

Wiring Diagram

Nema 23 1.5V Holding Torque Stepper Motor With Gearbox 212 Oz In For Multi Head Food Scale

Mechanical Dimension

GEARBOX Electrical Specification

Out diameter 56mm Powder metallurgy

Housing material	Bearing at output	Radial load(10mm from flange)N	Shaft axial load(N)	Shaft press-fit force max(N)	Radial play of shaft(mm)	Thrust play of shaft(mm)	Backlash at no-load (°)
Powder metallurgy	sleeve bearings	≤450	≤200	≤1000	≤0.03	≤0.1	≤1.5

Reduction ratio	Rated tolerance torque (Nm)	Max momentary tolerance torque (Nm)	Efficiency%	Length L (mm)	Weight(g)	Number of gear trains
1/4	2.0	6.0	81%	41.3	491	1
1/6
1/15	8.0	25	72%	59.6	700	2
1/18
1/26
1/47	16	50	72%	59.6	700	2
1/66

Mechanical Dimension

Nema 23 1.5V Holding Torque Stepper Motor With Gearbox 212 Oz In For Multi Head Food Scale

Product Application:

Multi-Head Food Scale step motor

Nema 23 1.5V Holding Torque Stepper Motor With Gearbox 212 Oz In For Multi Head Food Scale

Multi-head winding machine

The company dedicates to produce and design step motor, DC brushless motor, and gearbox motor. Please contact us directly if you're interested.
